Connecting rod
€155.00
incl. 19% VAT plus shipping

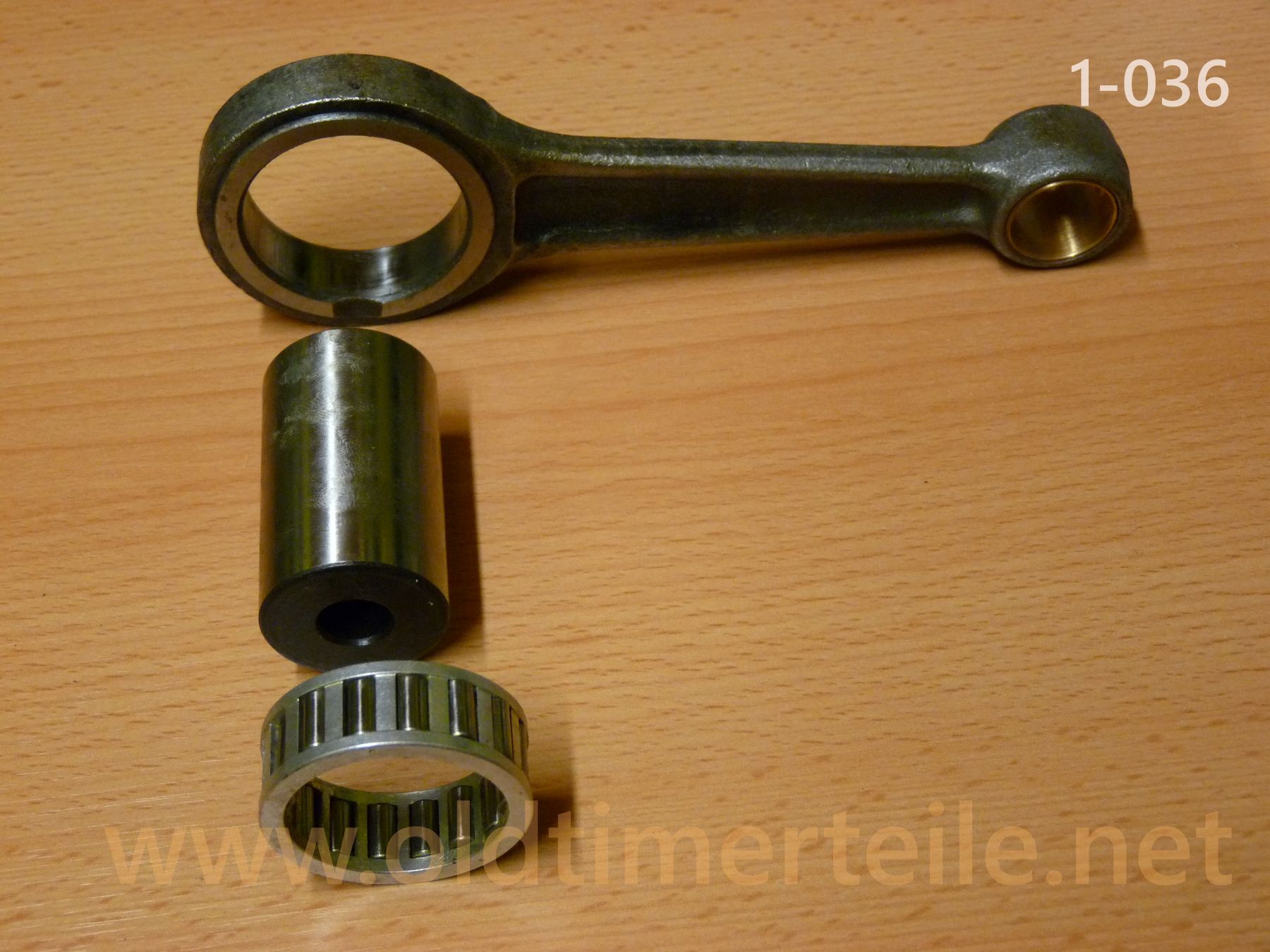

made in steel with bushing, for piston bolt with diameter: 20 mm, inclusive crank pin and cylinder roll.
Total length connecting rod: about 180 mm
Crank pin admission in connecting rod: about 42 mm
diameter crank pin: about 32mm
length of crank pin: about 54mm
BMW numbers:
11240017052
11210016551
11240016821
Total length connecting rod: about 180 mm
Crank pin admission in connecting rod: about 42 mm
diameter crank pin: about 32mm
length of crank pin: about 54mm
BMW numbers:
11240017052
11210016551
11240016821
Technical data
- Category
- BMW Isetta engine
- BMW part number
- 11240017052
- Item number
- 1-036
- Condition
- Not specified – on request
- Weight
- 0 kg
Availability on request
No instant purchase: after your request you will receive a personal quote including shipping costs.
Philipp Schäper
BMW Isetta specialist
Question about this item?
Recommendations
Frequently bought together 15
-
1-0235Flange
€4.90
-
1-03705Oil slinger ring
€18.90
-
1-0330Crankshaft
€329.90
-
1-0411Spacer ring 300 ccm Engine
€4.80
-
1-0425Sprocket
€36.50
-
1-097Inner spring ring
€0.70
-
1-048Hex nut
€5.80
-
1-103Retaining screw
€0.95
-
1-047lock plates
€4.80
-
1-100Chain tightener
€12.90
-
1-101Flat spring
€5.90
-
1-181Lock plate
€2.10
-
1-044Spring ring
€3.30
-
1-075Tappet
€39.90
-
1-098Cylinder head screw
€1.40
General information about this item
Product info
The connecting rod 1-036 for the BMW Isetta engine connects the piston (20 mm piston pin) to the crankshaft and is supplied complete with journal and cylinder roller. During engine restoration, it replaces worn-out or warped original connecting rods and ensures a backlash-free, dimensionally accurate power transmission once again. The new bearing and sliding surfaces reduce running noise and significantly increase the service life of the rebuilt engine.
